Hospital Nuclear Medicine Radiochemistry Fume Hoods
Universal protective fume hood with central integrated electronic controller management, completely isolated protective design, with independent negative pressure exhaust system, used to meet the clinical nuclear medicine PET type radiopharma packaging environment.
The protective fume hood is composed of three parts, the control area is located in the upper part, with an independent exhaust unit, and the operation control panel tilted 15° inward is easy for the operator to use and observe; The work area is located in the middle with lead glass Windows and two operator holes for access to the work area; The auxiliary area is located in the lower part, which is equipped with activity meter ionization chamber shielding well and radioactive material shielding transmission device, which fully meets the function of radiopharmaceuticals used in the packaging process of PET nuclides.
Related products
- Product Introduction
Universal protective fume hood with central integrated electronic controller management, completely isolated protective design, with independent negative pressure exhaust system, used to meet the clinical nuclear medicine PET type radiopharma packaging environment.
The protective fume hood is composed of three parts, the control area is located in the upper part, with an independent exhaust unit, and the operation control panel tilted 15° inward is easy for the operator to use and observe; The work area is located in the middle with lead glass Windows and two operator holes for access to the work area; The auxiliary area is located in the lower part, which is equipped with activity meter ionization chamber shielding well and radioactive material shielding transmission device, which fully meets the function of radiopharmaceuticals used in the packaging process of PET nuclides.
- Main Use Purpose
Universal protective fume hood with central integrated electronic controller management, completely isolated protective design, with independent negative pressure exhaust system, for clinical nuclear medicine FDG18, TC-99M, PET, I-131 and other radiopharma distribution environment.
Nuclear Medicine Radiochemistry Fume Hoods Specification:
| Item | Radiochemistry Fume Hoods | |
| 1 |
50mmPb.Overall lead shielding equivalent 50mmPb, activity meter shielding well lead shielding equivalent 50mmPb. |
|
| 2 |
Place 10mci of the drug source in the center of the inner chamber of the fume hood, 30cm away from the outer surface of the fume hood, and the surface dose rate is <2.5uSv/h. |
|
| 3 |
The inner liner is made of stainless steel plate with thickness >2mme. |
|
| 4 |
Exhaust system |
① Negative pressure ventilation, with its own exhaust system, the rated exhaust air volume of the fan >1200m3/h. |
|
② Interlocking control between fume hood and external air duct fan. |
||
|
③ With purification system, using activated carbon filter. |
||
|
④ Wind speed at the hand hole of the fume hood ≥1m/s. |
||
| 5 |
Visible lead glass window protection equivalent 50 mmPb, size ≥300x200mm. |
|
| 6 |
The operating table reserve activity meter ionization chamber shielding well set, radioactive protection waste box set, drug delivery lifting system set. |
|
| 7 |
With non-contact control door interlock device. |
|
| 8 |
The fume hood is equipped with 1 set of weak current control system, 2 sockets, 1 lighting lamp and 1 germicidal lamp. |
|
| 9 |
The device does not require Internet connection, and the manufacturer is not allowed to connect to the Internet without the approval of the hospital. |
|
| 10 |
Detection Work
|
① Equipped with radiation monitoring probe, real-time monitoring of environmental radiation dose. |
|
② When the tube voltage rating is 60ky and the tube current is 16mA, the X-ray pulse exposure time is sequently exposed from 10 ms to 40 ms, and the instrument can detect all of them, and the uniformity rate is displayed in a linear distribution. A test report issued by a nationally recognized third-party testing institution is required. |
||
|
③ When the tube voltage is rated at 60kv and the X-ray pulse exposure time is 20 ms, the tube current increases from 16mA to 32mA successively, which can be detected by the instrument, and the dose rate is displayed in a linear distribution. Provide the test report issued by the third party testing agency recognized by the state. |
||
| 11 |
Equipped with intelligent AI human-computer interaction control platform, non-contact intelligent control of fume hood lighting, sterilization, negative pressure ventilation, drug lifting platform, switch socket, door interlock and other functions. |
|
| 12 |
Body Size：≥1100mm*950mm*2300mm;Liner Size：≥800mm*700mm*700mm;Total Weight: 2500Kgs |
|
PETCT Auxiliary Products List and Configuration:
|
Item |
Product Name |
Qty |
Specification |
|
1 |
FDG Protective Fume Hood |
1Set |
Size：1.1*0.7*2.4m ;50mmPb |
|
2 |
FDG Automatic subassembly system |
1Set |
|
|
3 |
Activity meter |
1Pcs |
Import CRC-55TR |
|
4 |
Integrated injection window |
1Pcs |
Injection table：≥1800mm(H)*800mm(W);40mmPb |
|
5 |
Positron drugs use waste buckets（Injection room, PET machine room, lounge 2） |
4Pcs |
Size: 400*400*400mm;20mmPb |
|
6 |
Big smart lead box |
1Pcs |
Size: 800*600*800mm;20mmPb |
|
7 |
Source protection safe |
1Pcs |
Size：650*500*400mm;20mmPb |
|
8 |
PET Machine room lead screen |
4Pcs |
Size：1800*1000mm，8mmPb PET C TMachine Room、Between ect and pet ctInjection window、Waiting room |
|
9 |
Walkway type pedestrian radioactivity monitoring system |
1Pcs |
Testing of outpatients upon discharge |
|
10 |
Hand and foot contamination meter |
1Pcs |
Medical staff after work detection, to protect the health of medical staff |
|
11 |
Intelligent monitoring system for drug residue activity |
1Pcs |
400MBq（Ward use） |
|
12 |
Portable digital personal radiation dose alarm instrument |
6Pcs |
Quantity to be determined |
|
13 |
Digital area radiation dose monitoring system |
8Pcs |
Pet ct Machine room door, operation room, corridor |
|
14 |
Digital surface contamination meter |
1Pcs |
|
|
15 |
Portable Χγ ionization chamber survey instrument |
1Pcs |
|
|
16 |
Protective drug transfer tank |
2Pcs |
40mmPb |
|
17 |
Tungsten alloy protective sleeve for syringe |
2Pcs |
8mmPb |
|
18 |
Syringe transfer protective box |
2Pcs |
20mmPb |

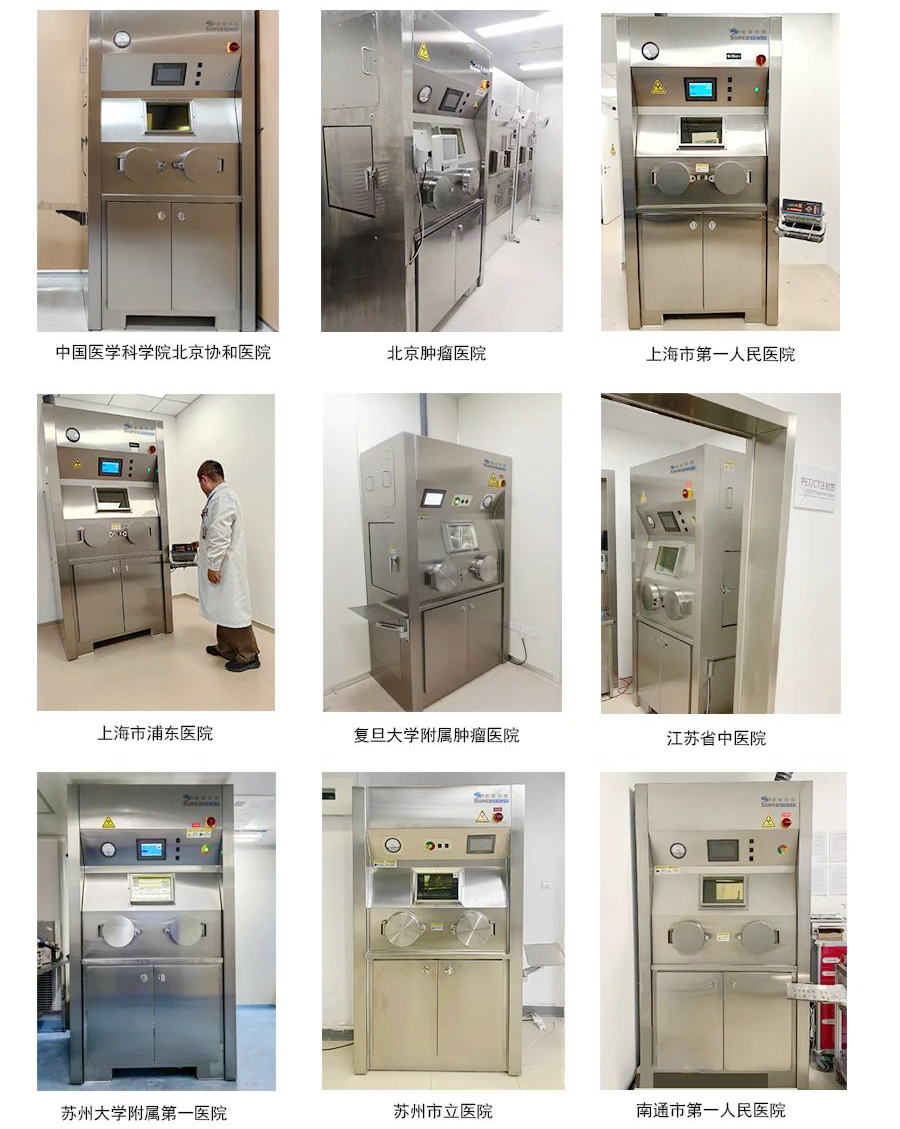

Nuclear Medicine Radiochemistry Fume Hoods Project Cases:
