Intelligent Storage Decay System For Radioactive Waste Liquid In Nuclear Medicine
The radioactive waste liquid is characterized by many types and high concentrations of radioactive isotopes, radioactivity, and great harm to humans and animals. However, the traditional radioactive waste liquid treatment can only rely on a rough understanding of the half-life of radioactive waste liquid natural decay treatment, Gemei technology independently developed for nuclear medicine, radioactive waste liquid intelligent storage decay system, with decay dynamic real-time monitoring, process display, information storage and other functions.
Related products
- Intelligent Storage Decay System Introduction

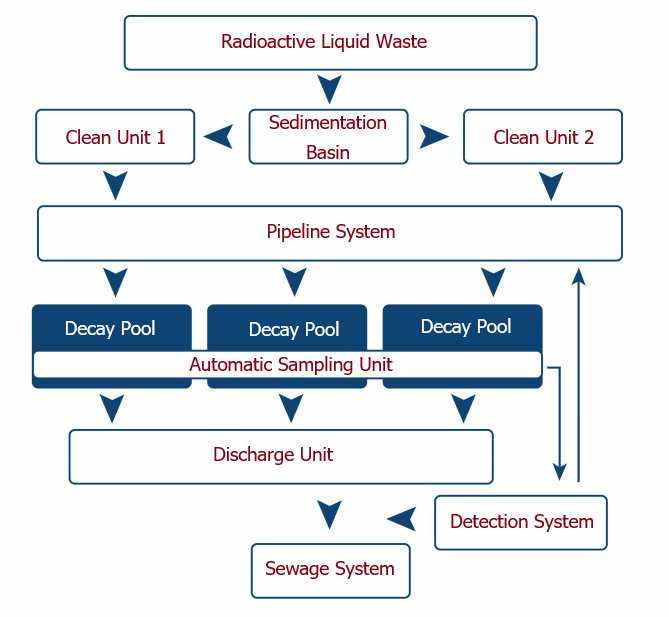

The radioactive wastewater produced in the hospital is mainly the domestic sewage produced by the patients injected with radionuclides. The domestic sewage generated in the patient's special toilet and other restricted areas is collected through special pipes to the decay tank of the nuclear medicine department. Trough decay and multiple monitoring and treatment are adopted. After sufficient decay, the radioactive waste water discharge limit can be discharged after detection.
This radioactive waste liquid monitoring and treatment discharge system is specially designed and developed for the workplace where radioactive waste liquid is produced, which meets the national environmental protection requirements and is widely used in industrial, medical and other radioactive places. According to the half-life of radionuclide drugs used in the nuclear medicine nuclide treatment ward area and the outpatient imaging area, two sets of long and short half-life nuclei can be designed in parallel Prime decay pool.
- Intelligent storage decay system for radioactive waste liquid provides advanced solutions for radioactive waste liquid treatment
>> It can be widely used in industrial, medical and other radioactive sites, especially in nuclear medicine.
>> It is committed to the optimization of radiation protection in nuclear medicine, so as to minimize exposure to staff, patients and the public, prevent radioactive contamination to the greatest extent, and protect the environment and public health.
>> Comply with "GB18871-2002 Ionizing radiation protection and radiation source safety Basic standards" "GBZ120-2006 Clinical Nuclear Medicine radiation protection Standards".
>> Based on the types of radionuclides used in the department of Nuclear medicine and the discharge of waste liquid and other sewage, the structure and volume were optimized according to the emission limits of radioactive waste liquid.The requirements of national standards such as "HJ2029-2013 Technical Specification for Hospital Sewage Treatment Engineering"
>> Based on the types of radionuclides used in the department of Nuclear medicine and the discharge of waste liquid and other sewage, the structure and volume were optimized according to the emission limits of radioactive waste liquid.
- Intelligent Storage Decay System Features:
>> Stainless steel storage tank body, inside and outside the tank coated with anti-rust and acid-alkali resistant paint, solid and durable.
>> Central control operating system, easy to operate, easy to manage, radioactive waste storage environment at a glance.
>> Flow chart control panel: radioactive waste liquid inlet and discharge process at a glance.
>> Free to set up liquid waste storage: the main storage and discharge time can be freely adjusted according to demand.
>> Can display high and low liquid level of waste liquid: liquid level meter can understand the status of waste liquid reserves.
>> Total emissions can be recorded: The discharge counter can calculate the total emissions.
>> Abnormal liquid level alarm: high or low liquid level abnormal condition warning and alarm.
>> System failure test: can test the system failure or abnormal condition and prevent abnormal operation.
>> Safety displacement interlocking device: can prevent accidental and improper discharge.
>> (Optional Function) Activity determination and identification of nuclides: Activity and nuclear species can be determined to know the status of storage and whether discharge standards are met.

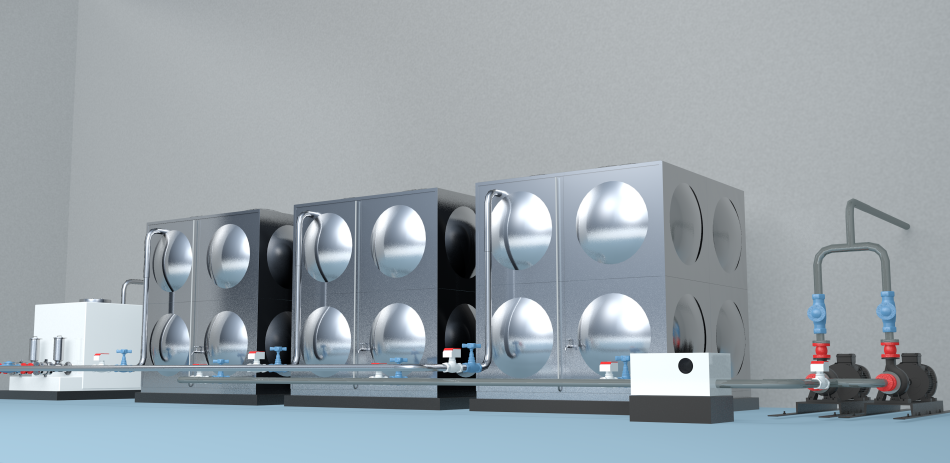

- Intelligent Storage Decay System Composition:
The radioactive waste liquid intelligent storage decay system is mainly composed of microbial degradation tank, radioactive waste liquid decay tank, electric valve actuator, self-priming liquid discharge pump, pressure sensor, limit level sensor, waste liquid sampling and measurement system, radioactive waste liquid control cabinet, pipeline connection, control circuit and circuit, temperature and humidity sensor, professional control software and other parts.
- Basic configuration and automatic control method of intelligent storage decay system for radioactive waste liquid.
1, Computer control system:
The control station adopts the upper computer text interface with PLC control system, PLC components include: computer, human-machine interface, PLC, level meter, upper configuration. The system is controlled by the computer and operated by no one. When it is necessary to query, the computer can be turned on to read or print relevant data. The system must be managed by special personnel, who can turn on the computer regularly to observe the operation situation and understand the liquid level transformation of the decay pool from the computer screen, so as to find problems and deal with them in time.
2, Lines, pipelines, all kinds of valves, pumps:
Lncluding control lines, water inlet pipes, drainage pipes, overflow pipes, electric valves, manual valves, sampling valves, motors, discharge pumps, etc. Drain pipe: It is used to discharge the harmful gas generated in the sewage storage process to protect the operation safety of the entire device. Overflow pipe: Used for control failure, when the manager is not on site, the sewage can flow through the overflow pipe to other empty pools, to avoid the harm of radioactive sewage overflow to the surrounding environment and the human body, and to improve the safety performance of the system. Total sewage discharge device: can coordinate the whole system to speed up the discharge of sewage.
3,Automatic control method:
The system is equipped with a computer control center, which can realize the microcomputer electronic control operation of the whole system, and solve the problem of personal protection in the operation of personnel; The activity of radioactive sewage can be dynamically and real-time monitored, and the data can be displayed and printed at any time to ensure the stable operation of the radioactive sewage treatment device and make the radioactive sewage meet the discharge standards.

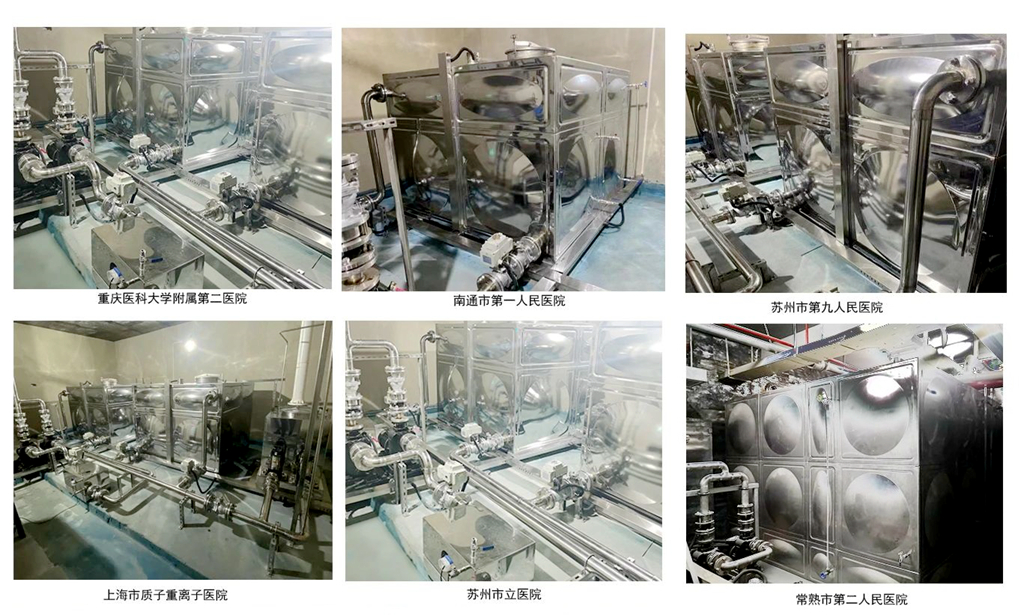

- Intelligent Storage Decay System Introduction Project Cases:
