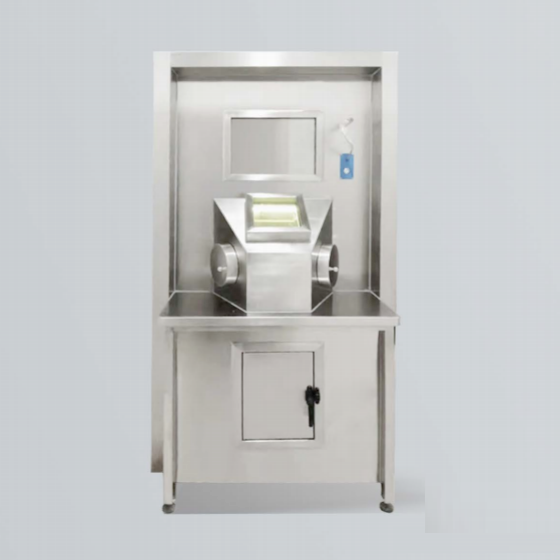

Nuclear Medicine Radiopharmaceutical Integrated Injection Platform
The one-body injection window is suitable for the drug injection room of nuclear medicine department. It can reduce the exposure of the operator by 90%, and the protection equivalent standard can be adjusted according to the use site and customer requirements; It is equipped with high lead glass observation window, equipped with lighting, convenient for injection operation observation. It is used for the protection of radioactive injection and drug administration.Meet all the needs of healthcare professionals during PET patient drug injection, including PET drug injection, high energy radiation protection, ultraviolet sterilization, illumination, radioactive waste storage, and optional PET drug activity and residual dose correction.
Related products
- Integrated Injection Platform Introduction
The one-body injection window is suitable for the drug injection room of nuclear medicine department. It can reduce the exposure of the operator by 90%, and the protection equivalent standard can be adjusted according to the use site and customer requirements; It is equipped with high lead glass observation window, equipped with lighting, convenient for injection operation observation. It is used for the protection of radioactive injection and drug administration.Meet all the needs of healthcare professionals during PET patient drug injection, including PET drug injection, high energy radiation protection, ultraviolet sterilization, illumination, radioactive waste storage, and optional PET drug activity and residual dose correction.
- Integrated Injection Platform Features:
1, In line with PET positron radiopharmaceutical packaging process purification.
>> This product has a vertical layer of high efficiency HEPA filtration system into the air, clean air evenly scattered around the box;
>> The filtration efficiency is 99.995%, the initial resistance is 110PA, and the wind speed is 0.3-0.58m /s.
>> Purification grade: ClassA, meet the GMP requirements;
>> Special radioactive gas filtration exhaust system, air circulation design;
>> Negative pressure design, hand hole negative pressure air velocity ≥0.9m/s, to achieve 100% discharge rate, while avoiding the air into the box;
>> Ultraviolet + ozone sterilization without dead Angle, sterilization efficiency can reach 100%;
2, Comply with ICRP international radiation safety environmental standards.
>> Front integral protective shielding 10mmPb;
>> L-shaped shielding for PET injection 50mmPb;
>> It is provided with a lead glass window with the same protective equivalent of the box, the specification is 400mm (W) ×300mm (H), transparent and visible inside the box;
3, Material: 304 stainless steel/galvanized steel plate/pure lead/lead glass;
Specifications (W*H*D) : can be customized according to customer requirements;
