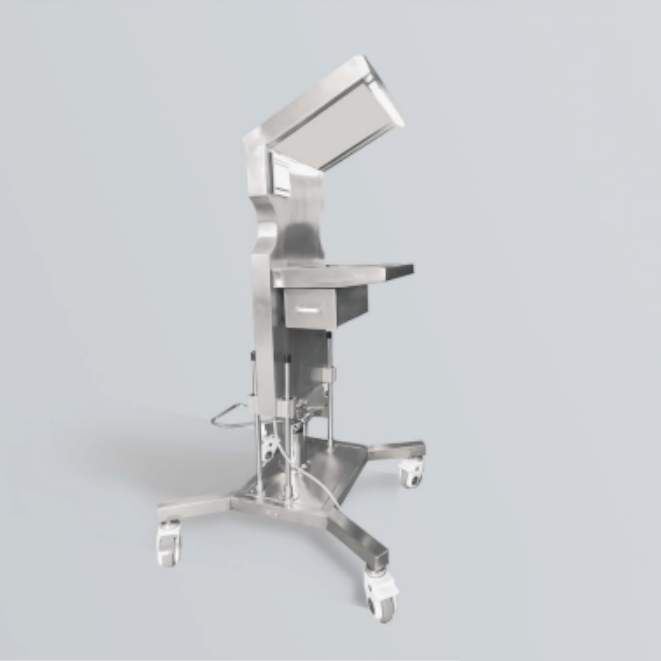

Movable Nuclear Medicine Radiopharmaceutical Injection Protection Vehicle
The movable injection vehicle is composed of L-shaped protective screen and 304 stainless steel injection cart. The L-shaped protective screen is fixed on the injection cart for the operator to move or obtain radioactive materials at close range during injection. When the patient condition requiring radionuclide drug injection imaging diagnosis does not support operation on the fixed injection table. The injection table can be pushed to the bedside of the patient for injection.
Related products
- Movable Injection Vehicle Introduction:
The movable injection vehicle is composed of L-shaped protective screen and 304 stainless steel injection cart. The L-shaped protective screen is fixed on the injection cart for the operator to move or obtain radioactive materials at close range during injection. When the patient condition requiring radionuclide drug injection imaging diagnosis does not support operation on the fixed injection table. The injection table can be pushed to the bedside of the patient for injection.
- Movable Injection Vehicle Features:
▶ The height of the operating table can be adjusted electrically, which is easy to adjust the appropriate injection height.
▶ It is equipped with L-shaped high lead glass observation window with the same protective ability as the car body.
▶ The overall near-earth protection design of the front side can effectively increase the protection area.
▶ Equipped with universal bearing casters, can be flexibly moved or firmly placed.
▶ Equipped with lighting fixtures.
▶ Plug-in standard power connection cable, convenient transportation and storage, no need for professional installation.
▶ Under drawer optional.
▶ Fixed stainless steel tray.
- Movable Injection Vehicle Parameters:
▶ Main material: Lead Plate,Lead Glass,304 stainless steel inside and outside, easy to clean.
▶ L-shaped shield screen size: 420x450x490mm.
▶ Lead shielding:50mmPb.
▶ Lead Visual windows:200x250mm
▶ Injection Vehicle Size:450x380x760mm
▶ Total weight:270Kgs.
